🔌 For Sale: Siemens GEAFOL Neo 630 kVA Cast Resin Dry-Type Transformer with Enclosure – Germany

We are offering a Siemens GEAFOL Neo cast resin dry-type transformer in excellent condition, complete with protective enclosure. The unit is located in Germany and is ready for immediate inspection and sale.

🔧 Technical Specifications:

  • Make / Model: Siemens GEAFOL Neo

  • Type: Cast Resin Dry-Type Transformer

  • Power Rating: 630 kVA

  • High Voltage (HV): 20 kV

  • Low Voltage (LV): 0.4 kV

  • Vector Group: Dyn5

  • Frequency: 50 Hz

  • Cooling: AN (Air Natural)

  • Enclosure: Ventilated cabinet with protective access door

  • Total Losses: 9,820 W

  • Short Circuit Voltage (Uk): 4%

  • Manufacture Date: February 2019

  • Location: Germany

  • Condition: Lightly used, excellent visual and operating condition

  • Availability: Immediate

  • Documentation: Technical datasheet and images available upon request

⚙️ Harmonic Load Rated:

  • Designed for harmonic-rich environments (THDi rated)

  • Capable of supporting distortion levels of 3rd, 5th, 7th up to the 49th harmonic

  • Ideal for variable speed drives, UPS systems, or sensitive industrial applications

📸 Included Images:

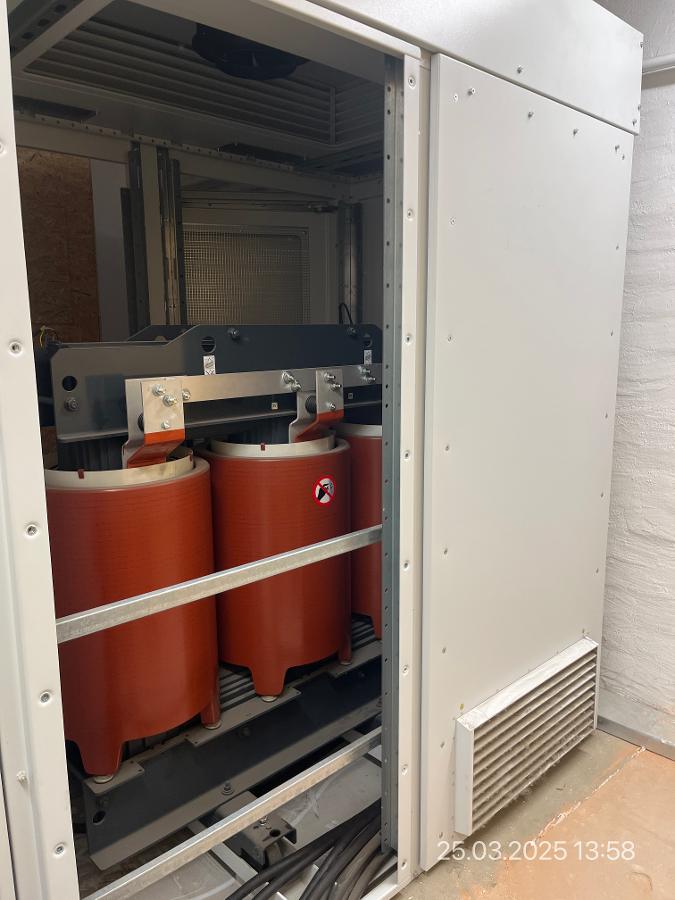

  • Enclosure interior view with wiring

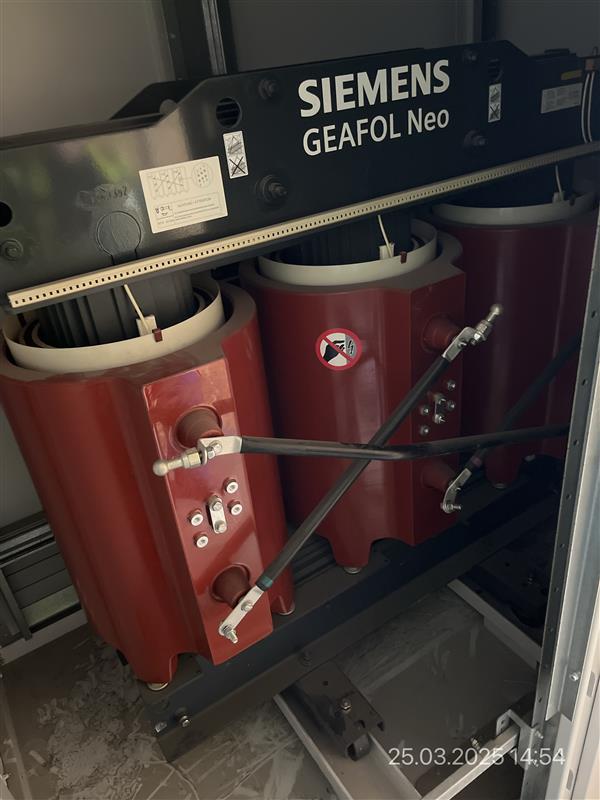

  • Transformer coil core and terminal close-ups

  • Siemens GEAFOL Neo nameplate and winding assembly

🚚 Shipping & Terms:

  • Delivery Terms: EXW Germany (can assist with EU-wide transport)

  • Inspection: Welcome on request

  • Pricing: Competitive and negotiable

✅ Applications:

Perfect for use in:

  • Data centers

  • Renewable energy inverters (solar/wind)

  • Industrial automation plants

  • Infrastructure or commercial facilities

  • Indoor or environmentally controlled electrical rooms
